Physical Characteristics
L x W x H
1400 x 860 x 340 mm
Mass
187 kg

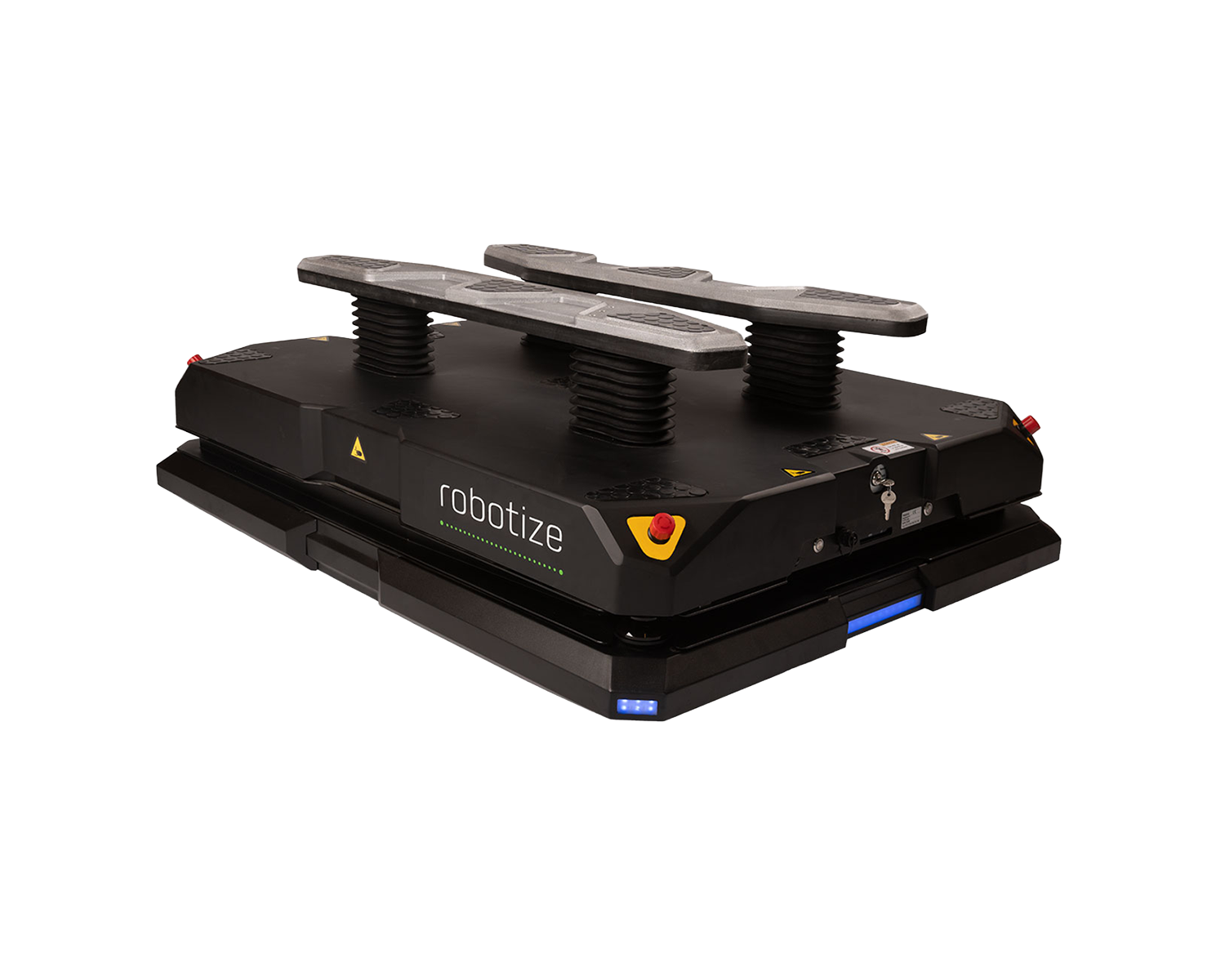

GoPal® E24W

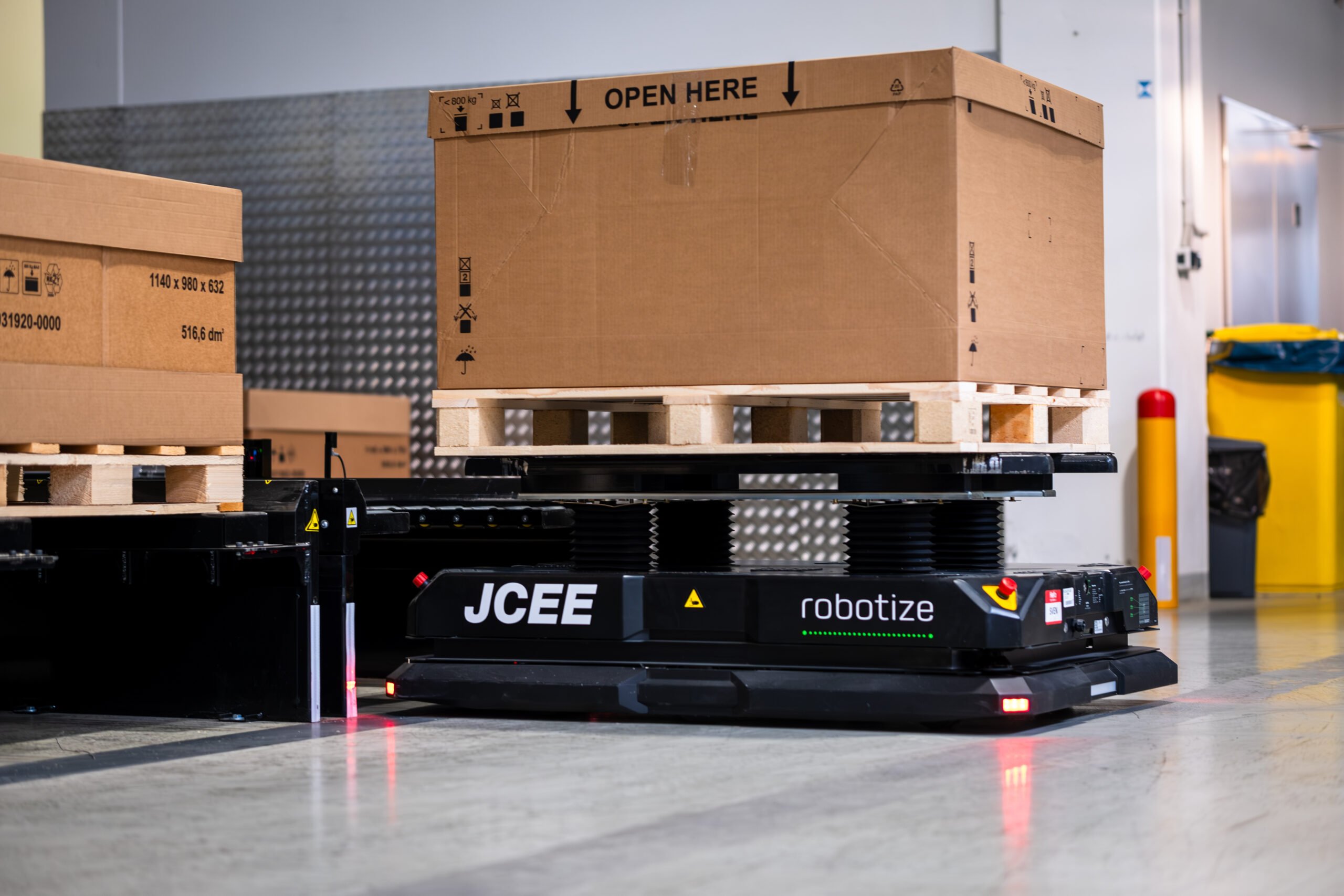

The GoPal® E24W pallet AMR is designed for transporting wide and very heavy payloads (max. 1200 kg // 2640 lbs) on industrial Euro-pallets, standard Euro-pallets, half Euro-pallets or similar pallets/cages.
Dimensions (L x W x H): 1400 x 860 x 340 mm
Battery time (autonomy): 6-14 hours (or up to 20 km)*
Speed (max.): 2,2 m/s (7,9 km/h)
Max. payload: 1200 kg
Performance
Battery time (autonomy)
6-14 hours (or up to 20 km)*
Speed (max.)
2,4 m/s (8,6 km/h)*
Turning diameter
In place rotation(950 mm)
Load
Max. payload
500 kg
Length (max.)
1240 mm
Width (max.)
820 mm
Height (max.)
2400 mm*
GoPal® E24W specifications
APPLICATION
Autonomous Mobile Robot (AMR) intended for broader possible variety of pallet formats with medium-to-heavy weight payload.
PHYSICAL CHARACTERISTICS
L x W x H: 1400 x 1060 x 340 mm
Mass: 215 kg
PERFORMANCE
Battery time (autonomy): 6-14 hours (or up to 20 km)*
Speed (max.): 2,2 m/s (7,9 km/h)
Turning radius: 1000 mm (from robot center)
SAFETY
Laser scanners (360° protection)
Mechanical bumper (360° protection)
4 x emergency stop buttons
ADDITIONAL OBSTACLE AVOIDANCE SENSORS
3 x 3D camera. Two in the front and one in the back of the robot
BATTERY
Type / Voltage: LiFePO4 / 48V
Charge time: 45 minutes (full charge)
Number of charges: About 5.000
CHARGER INTERFACE
Automatic docking interface in front of the robot
Connector in back of the robot for manually charging
COMMUNICATION
Wi-Fi: 802.11ac
ENVIRONMENTAL
Operating temperature: -10°C to +45°C
Humidity (max.): 95% (non-condensing)
FLOOR REQUIREMENTS
Slope average (max.): Near-level
Friction coefficient (min.): 0,6
Maximum edge height: 3 mm
LOAD
Max. payload: 1200 kg
Length (max.): 1240 mm
Width (max.): 1000 mm
Height (max.): 2400 mm*
PALLET TYPES
Standard EUR pallets / Standard 1/2 EUR pallets / Industrial EUR Pallets.
Others on inquiry.
PALLET CONDITION
Undamaged, original strength maintained (grade A or B)
LANE CONDITIONS
Minimum lane width: 1400 mm
Recommended lane width: 2300 mm
High speed lane width: 3000 mm
*depending on load conditions
