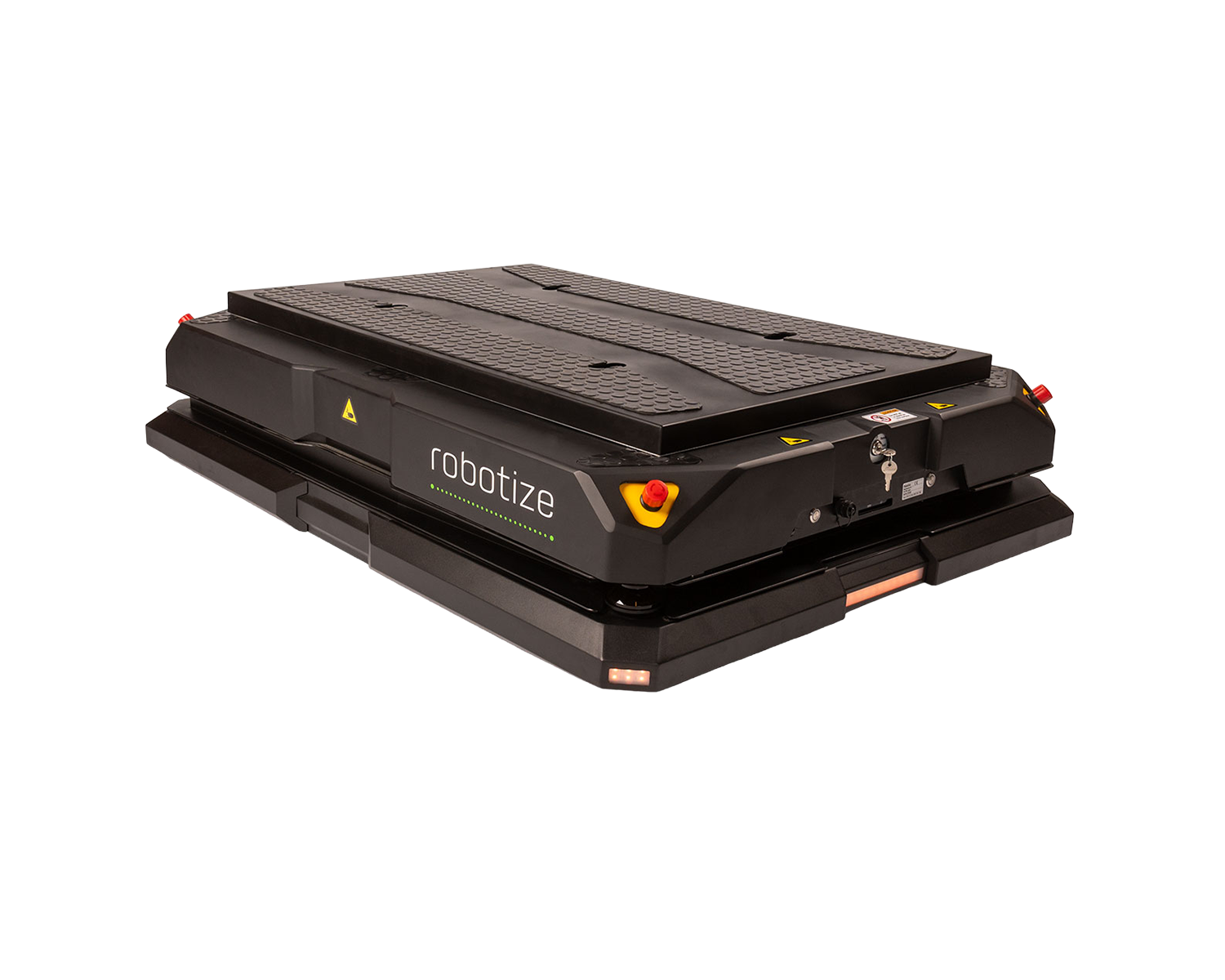

GoPal® U22W

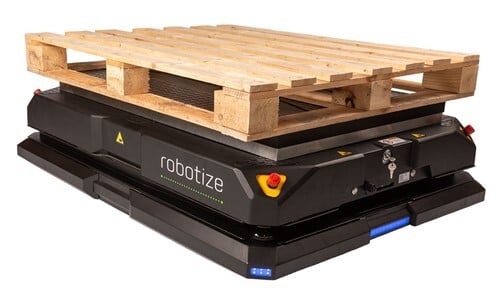

The GoPal® U22W pallet AMR is designed for transporting low-to-medium payloads (max. 500 kg // 1100 lbs) on UK/US-pallets.

Dimensions (L x W x H): 1400 x 1060 x 340 mm // 55.12 x 41.73 x 13.39 in

Battery time (autonomy): 6-14 hours (or up to 20 km* // 12.4 miles*)

2,2 m/s (7,9 km/h) // 7.2 ft/s (4.9 MPH)*

Max. payload:  500 kg // 1100 lbs.

Physical Characteristics

L x W x H
1400 x 860 x 340 mm

Mass
187 kg

Performance

Battery time (autonomy)
6-14 hours (or up to 20 km)*

Speed (max.)
2,4 m/s (8,6 km/h)*

Turning diameter
In place rotation(950 mm)

Load

Max. payload
500 kg

Length (max.)
1240 mm

Width (max.)
820 mm

Height (max.)
2400 mm*



GoPal® U22W specifications

APPLICATION
Autonomous Mobile Robot (AMR) designed for transporting low-to-medium payloads (max. 500 kg // 1100 lbs) on US/UK pallets.



PHYSICAL CHARACTERISTICS

L x W x H: 1400 x 1060 x 340 mm // 55.12 x 41.73 x 13.39 in
Mass:  242 kg // 534 lbs



PERFORMANCE

Battery time (autonomy): 6-14 hours (or up to 20 km* // 12.4 miles*)
Speed (max.):  2,2 m/s (7,9 km/h) // 7.2 ft/s (4.9 MPH)*
Turning diameter:  1000 mm // 39.4 in (from robot center)



SAFETY

Laser scanners (360° protection)
Mechanical bumper (360° protection)
4 x emergency stop buttons


ADDITIONAL OBSTACLE AVOIDANCE SENSORS

3 x 3D cameras (two front facing and one rear facing)

BATTERY

Type / Voltage: LiFePO4 / 48V
Charge time: 45 minutes (full charge)
Number of charges: About 5.000



CHARGER INTERFACE
Automatic docking interface in front of the robot
Connector in back of the robot for manually charging





COMMUNICATION

Wi-Fi: 802.11ac



ENVIRONMENTAL

Operating temperature:  -10°C to +45°C // +14°F to +113°F
Humidity (max.): 95 % non-condensing



FLOOR REQUIREMENTS

Slope average (max.): Near-level (2%)
Friction coefficient (min.): 0,60
Maximum edge height: 3 mm // 0.12 in



LOAD

Max. payload: 500 kg // 1100 lbs.
Length (max.): 1240 mm // 48.82 in (4.06 ft)
Width (max.): 1020 mm // 40.16 in (3.34 ft)
Height (max.):  2400 mm* // 94.50 in* (7.87 ft*)



PALLET TYPES

Specifically designed for US and UK pallets



PALLET CONDITION

Undamaged, original strength maintained



LANE CONDITIONS
Minimum lane width: 1400 mm // 55.12 in (4.60 ft)
Recommended lane width: 2300 mm // 90.55 in (7.55 ft)
High speed lane width: 3000 mm // 118 in (9.84 ft)

*depending on load conditions


For our range of pallet AMRs, the GoPal Solution provides a wide range of accessories, such as pallet stations, lift stations, conveyor stations, an IO BOx (auxiliary interface), physical/virtual buttons and much, much more.
