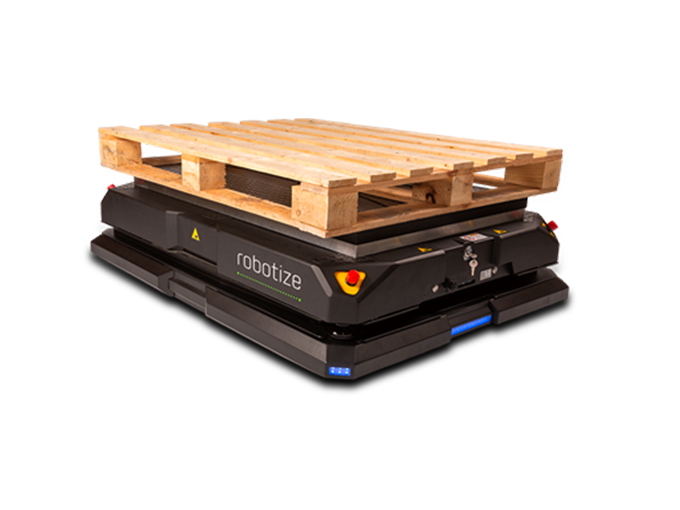

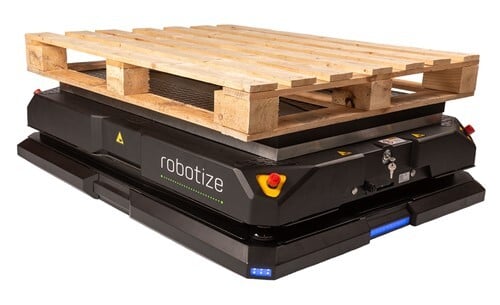

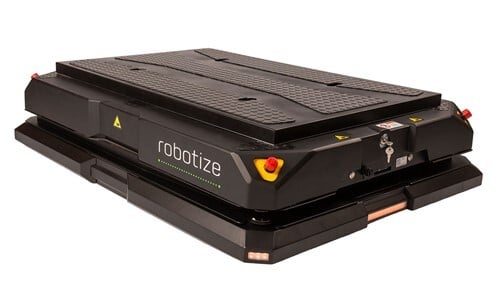

GoPal® U24W

The GoPal U24W pallet AMR is designed for transporting medium-to-heavy payloads (max. 1200 kg // 2640 lbs) on UK/US-pallets.

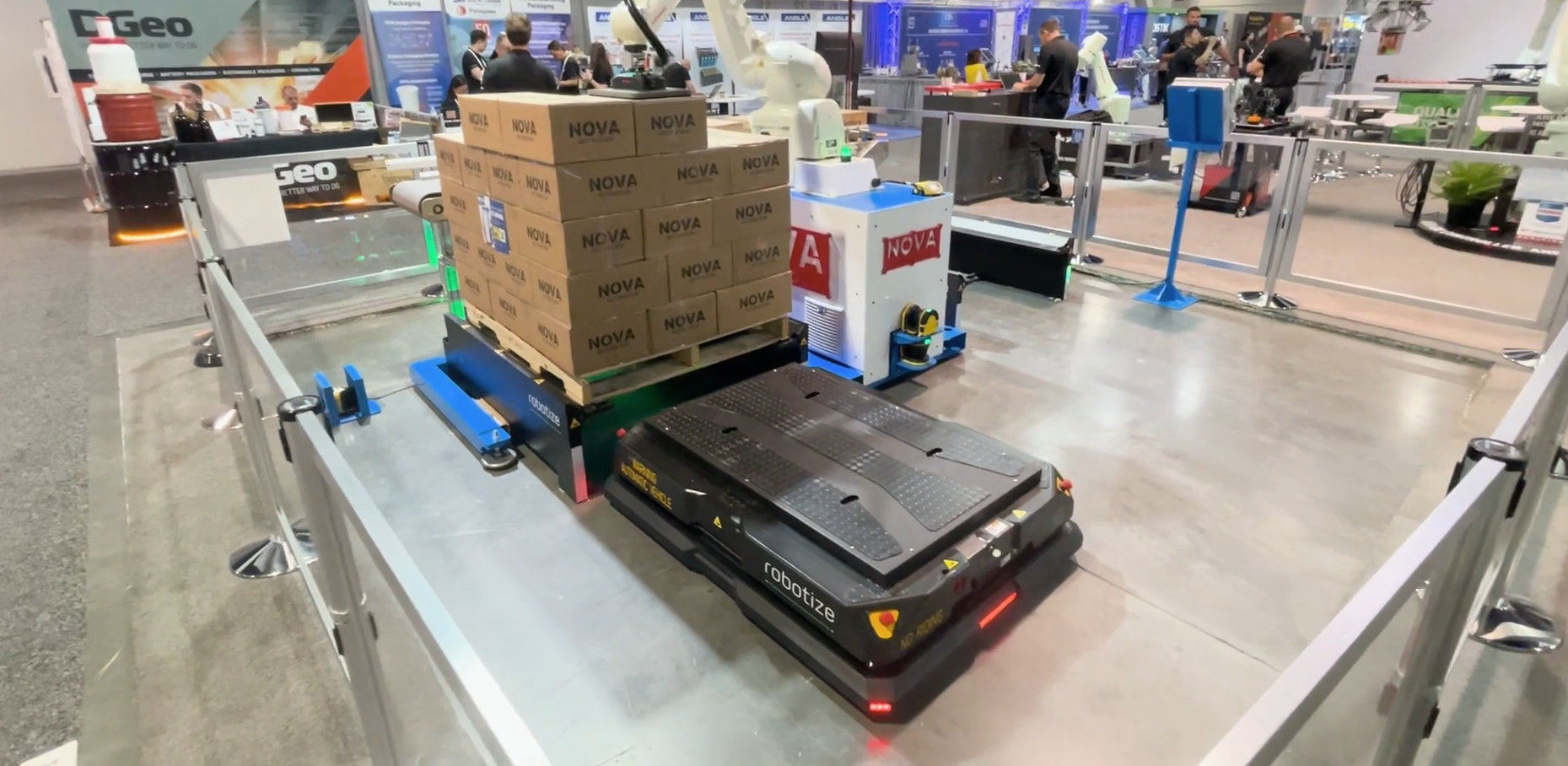

VIDEO: Watch the U24W in action




Dimensions (L x W x H): 1400 x 1060 x 340 mm // 55.12 x 41.73 x 13.39 in

Battery time (autonomy): 6-14 hours (or up to 20 km* // 12.4 miles*)

Speed (max.): 2,2 m/s (7,9 km/h) // 7.2 ft/s (4.9 MPH)*

Max. payload: 1200 kg // 2640 lbs.

Physical Characteristics

L x W x H
1400 x 860 x 340 mm

Mass
187 kg

Performance

Battery time (autonomy)
6-14 hours (or up to 20 km)*

Speed (max.)
2,4 m/s (8,6 km/h)*

Turning diameter
In place rotation(950 mm)

Load

Max. payload
500 kg

Length (max.)
1240 mm

Width (max.)
820 mm

Height (max.)
2400 mm*



GoPal® U24W specifications

APPLICATION

Autonomous Mobile Robot (AMR) designed for medium-to-high loads on US/UK pallets (max. 1200 kg // 2640 lbs).



PHYSICAL CHARACTERISTICS
Length x Width x Height: 1400 x 1060 x 340 mm // 55.12 x 41.73 x 13.39 in
Mass: 242 kg / 534 lbs



PERFORMANCE
Battery time (autonomy): 6-14 hours (or up to 20 km* / 12.4 miles*)
Maximum speed: 2,2 m/s (7,9 km/h) // 7.2 ft/s (4.9 MPH)*
Turning radius: 1000 mm / 39.4 in (from robot center)



SAFETY

Laser scanners (360° protection)
Mechanical bumper (360° protection)
4 x emergency stop buttons


ADDITIONAL OBSTACLE AVOIDANCE SENSORS

3 x 3D cameras (two front facing and one rear facing)

BATTERY

Type / Voltage: LiFePO4 / 48V
Charge time: 45 minutes (full charge)
Number of charges:  About 5000 charges



CHARGER INTERFACE
Automatic docking interface in front of the robot
Connector in back of the robot for manually charging





COMMUNICATION

Wi-Fi: 802.11ac



ENVIRONMENTAL

Operating temperature: -10°C to +45°C // +14°F to +113°F
Humidity (max.): 95% (non-condensing)



FLOOR REQUIREMENTS

Slope average (max.): Near-level (2%)
Friction coefficient (min.): 0,60
Maximum edge height: 3 mm // 0.12 in



LOAD
Maximum payload (incl. pallet): 1200 kg // 2640 lbs.
Length (max): 1240 mm // 48.82 in (4.06 ft)
Width (max): 1020 mm // 40.16 in (3.34 ft)
Height (max): 2400 mm* // 94.50 in* (7.87 ft*)



PALLET TYPES

Specifically designed for US and UK pallets



PALLET CONDITION

Undamaged, original strength maintained



LANE CONDITIONS
Minimum lane width: 1400 mm // 55.12 in (4.60 ft)
Recommended lane width: 2300 mm // 90.55 in (7.55 ft)
High speed lane width: 3000 mm // 118 in (9.84 ft)


*depending on load conditions


For our range of pallet AMRs, the GoPal Solution provides a wide range of accessories, such as pallet stations, lift stations, conveyor stations, an IO BOx (auxiliary interface), physical/virtual buttons and much, much more.
